Description

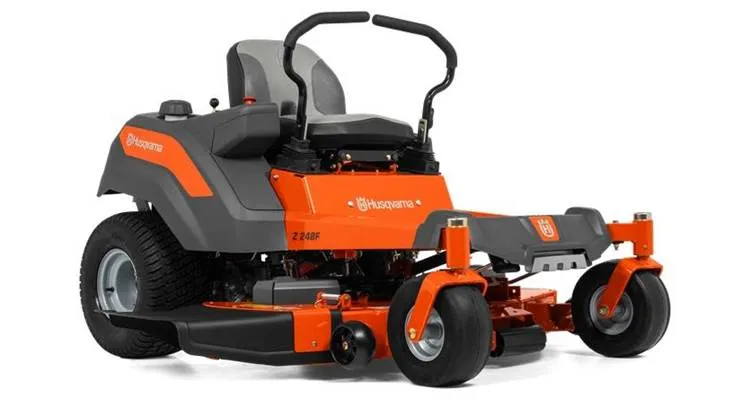

Performance and style hit the grass running with the Z200 series of zero-turn mowers. Equipped with an Endurance engine, the Z246 mower is engineered for homeowners who want to take their mowing work to the next level. This machine delivers more than enough ground speed and cutting efficiency to get the job done.
Key Features
- Automatic park brake system: The new patent pending park brake system automatically activates or deactivates as the steering levers are moved outward or inward, freeing the user of the task.
- Removable foot plate: The unique tube style chassis features a removable foot pan for easy access to the top of the cutting deck.
- Ergonomic control panel: The ergonomic control panel places everything conveniently at your fingertips.
- Refinement: Rubber bellows offer a refined look and prevent debris and moisture from entering the control system
Limited warranty
- Homeowner Warranty: 3 Years
- Commercial Warranty: No Warranty
Capacity
- Productivity: 2.4 acres/hr
- Speed forward max: 6.5 mph
- Speed forward min: 0 mph
Cutting deck
- Cutting width: 46 in
- Cutting deck type: Stamped, Reinforced
- Cutting methods: Collect/Mulch/Side discharge
- Cutting deck material: Steel
- Deck thickness: 13 gauge
- Cutting height steps: 6
- Blade engagement: Electric clutch
- Clutch rating: 105 ft.lb
- Blades: 2 pcs
- Blade-tip speed: 16600 fpm
- Anti-scalp wheels: 3
- Nose roller: No
- Deck lifting system: Manual, hand operated
- Powder-coated cutting deck: Yes
- Spindle/mandrel type: Aluminium, vented
- Greasable mandrels: Yes
- Deck Wash Port: Yes
- Cutting height, min (approximate): 1.5 in
- Cutting height, max (approximate): 4 in
Dimensions
- Base machine, length: 75 in
- Base machine, height: 40 in
- Base machine, width (chute down): 56.5 in
- Base machine, width (chute up): 48 in
- Weight: 504 lbs
Drive system
- Transmission type: Hydrostatic
- Transmission manufacturer: Hydro-Gear
- Transmission model: ZT-2200
- Pump displacement: 10 cm³
- Fan-cooled pumps: Yes
Engine
- Motor/engine manufacturer: Briggs & Stratton
- Engine name: Endurance Series V-Twin
- Power output: 20 hp
- Cylinder displacement: 40.03 cu.inch
- Cylinders: 2
- Engine cooling: Air
- Air filter type: Auto-type Paper
- Power/fuel type: Gasoline
- Engine lubrication type: Full pressure with oil filter
- Oil filter: Yes
- Fuel tank volume (with reserve): 3.5 gal (US)
- Fuel tank location: Side (Single)
Equipment
- Seat material: Vinyl
- Seat spring: Yes
- Seat back height: High
- Hour meter type: Digital with pre-programmed service intervals
- Cup holder: Yes
- Armrests: No
- Seat type: 15" high back
NOTES:
On Line Version - 970 46 74-01
