Description:

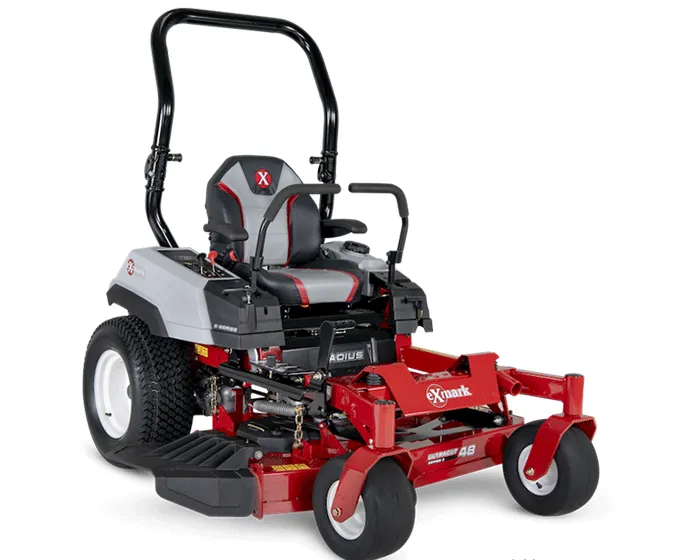

Designed to deliver professional-grade features at an affordable price, the new Exmark Radius E-Series zero-turn mower is a great option for landscape maintenance pros and home owners alike. Available with a choice of 48-, 52- or 60-inch UltraCut Series 3 cutting decks, the Radius E-Series delivers the cut quality you expect, with reduced maintenance and durability you can count on. Powered by the Exmark twin-cylinder commercial engine, Radius E-Series models deliver superior operator comfort with an isolated footrest, seat suspension and a new side pod design (2023 models) that places vital controls right at the operator’s fingertips.

Specification:

UPC
193308225340
Starter
Electric
Steering Control
Hydraulically dampened twin levers adjustable both fore and aft. Also has 2-position height adjustment.
Caster Forks
.375" thick caster yoke arms
Front Caster Tires
13 x 6.5-6, smooth tread, pneumatic. Bushings
Drive Tires
22 x 10.5-12 Super Turf TL
Parking Brake
Lever-actuated pawl brake.
Tractor Frame
Unibody, welded, heavy-duty 2" X 3" rectangular tubular steel.
Blade Spindles
No maintenance, sealed and non-greasable spindles; 7.30"-diameter cutter housing contains 17mm (.67") diameter spindle shaft and hex blade drive.
Electrical
12-volt battery with 15-amp alternator.
Standard Features
Engine hour meter, cup holder, tow hitch and jack receiver
Seat
High back seat with foam padded seat cushion, armrests and integral safety switch
Engine Brand
Exmark
Transmission Speeds
Infinitely Variable
Engine Model
LC2P77F
Engine Displacement
708 cc
Fuel System
Carbureted
Transmission
Hydrostatic
Engine Series
V-Twin
Engine Spec
K5045
Drive
Hydro-Drive
Engine Speed
3,600 rpm
Air Filter
Standard Engine Manufacturer's air filter
Fuel Capacity
7-gallon (26.5-L) single fuel tank with single fill location.
Drive Description
Dual Hydro Gear ZT3100, hydrostatic transmission with charge pumps, relief valves and independent, replaceable filters.
Fuel Type
Gas Carbureted
PTO Engagement
MagStop electromagnetic 125-ft-lb clutch
Drive Wheel Release
Allows unit movement without engine running.
Fuel Indicator
Translucent Visual
Deck Lift
Standard; foot-controlled deck lift changes cutting height and lifts the deck to maneuver around obstacles, or place in transport position.
Carb Compliant
No
Safety Package
Operator Presence Controls (OPC) and drive system interlock, with safety interlock system indicators.
ROPS
2-post foldable ROPS standard with seat belt and latch.
Deck Style
Floating Deck
Deck Style Description
Full-floating UltraCut Series 3. Side discharge standard, with molded discharge chute and option to bag or mulch.
Width / Cutting Deck
60"
Deck Construction
10-gauge high strength alloy top that is formed and continuously seam welded, with 7-gauge side skirt.
Cutting Heights
1.5" (3.8 cm) to 5.0" (12.7 cm) in 0.25" (.6 cm) increments, adjustable from operator's seat.
Blade Tip Speed
Approximately 18,500 fpm
Blades
3 Blades at 20.50" Length
Dimensions
Width: 72.3 in (183.6 cm)
Height: 69.7 in (177.0 cm)
Length: 80.5 in (204.5 cm)
Curb Weight
901 lbs
